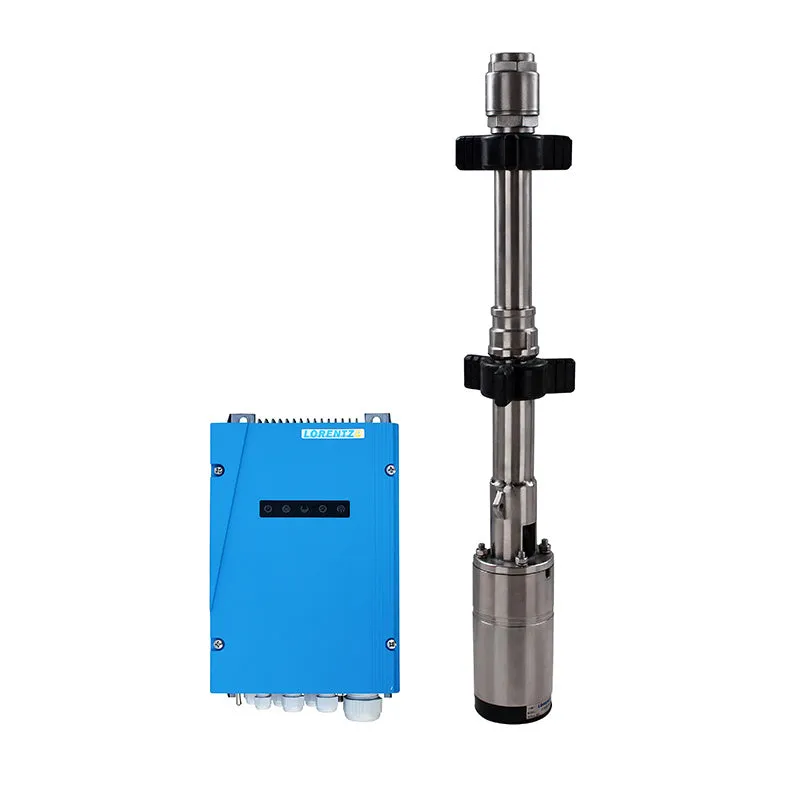

System Overview
- Head max.: 70 m.
- Flow rate max.: 0.72 m³/h.
Technical Data
Controller PS2-600 HR-07
Features
- Controlling and monitoring.
- Control inputs for dry running protection, remote control etc.
- Protected against reverse polarity, overload and overtemperature.
- Integrated MPPT (Maximum Power Point Tracking).
- Battery operation: Integrated low voltage disconnect.
Specifications
- Power max.: 0,70 kW.
- Input voltage max.: 150 V.
- Optimum Vmp**: > 68 V.
- Motor current max.: 13 A.
- Efficiency max.: 98 %.
- Ambient temp.: -40...50 °C.
- Enclosure class : IP68.
Motor ECDRIVE 600-HR
Features
- Maintenance-free brushless DC motor.
- Water filled.
- Premium materials, stainless steel: AISI 304/316.
- No electronics in the motor.
Specifications
- Rated power: 0,70 kW.
- Efficiency max.: 92 %.
- Motor speed: 900...3 300 rpm.
- Insulation class: F.
- Enclosure class: IP68.
- Submersion max.: 150 m.
Pump End PE HR-07
- Non-return valve.
- Premium materials, stainless steel: AISI 304.
- Helical rotor pump.
- Efficiency max. 61 %.
Pump Unit PU600 HR-07 (Motor, Pump End)
- Borehole diameter min.: 4,0 in.
- Water temperature max.: 50 °C.
Dimensions
- Controller HxWxD = 352 mm x 207 mm x 124 mm; Weight = 5.6Kg.
- Pump Unit HxWxD = 771 mm x 147 mm x 147 mm; Weight = 12Kg.
- Motor Weight = 7Kg.
- Pump End Weight = 4.2Kg.
**Vmp: MPP-voltage under Standard Test Conditions (STC): 1000 W/m² solar irradiance, 25 °C cell temperature.
